SpringCloudGateway(网关)

1

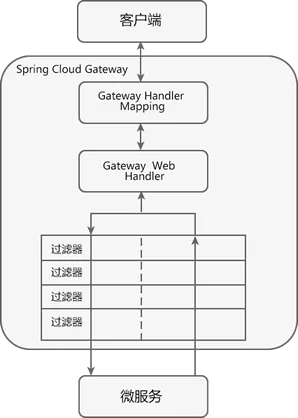

Spring Cloud Gateway 是基于 WebFlux 框架实现的，而 WebFlux 框架底层则使用了高性能的 Reactor 模式通信框架 Netty。

1
<?xml version="1.0" encoding="UTF-8"?>
2
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
3
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 https://maven.apache.org/xsd/maven-4.0.0.xsd">
4
    <modelVersion>4.0.0</modelVersion>
5
    <parent>
6
        <artifactId>spring-cloud-demo2</artifactId>
7
        <groupId>net.biancheng.c</groupId>
8
        <version>0.0.1-SNAPSHOT</version>
9
    </parent>
10
    <groupId>net.biancheng.c</groupId>
11
    <artifactId>micro-service-cloud-gateway-9527</artifactId>
12
    <version>0.0.1-SNAPSHOT</version>
13
    <name>micro-service-cloud-gateway-9527</name>
14
    <description>Demo project for Spring Boot</description>
15
    <properties>
16
        <java.version>1.8</java.version>
17
    </properties>
18
    <dependencies>
19
        <dependency>
20
            <groupId>org.springframework.boot</groupId>
21
            <artifactId>spring-boot-starter</artifactId>
22
        </dependency>
23
        <dependency>
24
            <groupId>org.springframework.boot</groupId>
25
            <artifactId>spring-boot-starter-test</artifactId>
26
            <scope>test</scope>
27
        </dependency>
28
        <!--特别注意：在 gateway 网关服务中不能引入 spring-boot-starter-web 的依赖，否则会报错-->
29
        <!-- Spring cloud gateway 网关依赖-->
30
        <dependency>
31
            <groupId>org.springframework.cloud</groupId>
32
            <artifactId>spring-cloud-starter-gateway</artifactId>
33
        </dependency>
34
        <!--Eureka 客户端-->
35
        <dependency>
36
            <groupId>org.springframework.cloud</groupId>
37
            <artifactId>spring-cloud-starter-netflix-eureka-client</artifactId>
38
        </dependency>
39
        <dependency>
40
            <groupId>org.springframework.boot</groupId>
41
            <artifactId>spring-boot-devtools</artifactId>
42
        </dependency>
43
        <dependency>
44
            <groupId>org.projectlombok</groupId>
45
            <artifactId>lombok</artifactId>
46
        </dependency>
47
    </dependencies>
48
    <build>
49
        <plugins>
50
            <plugin>
51
                <groupId>org.springframework.boot</groupId>
52
                <artifactId>spring-boot-maven-plugin</artifactId>
53
            </plugin>
54
        </plugins>
55
    </build>
56
</project>

1
server:
2
  port: 9527  #端口号
3
spring:
4
  application:
5
    name: microServiceCloudGateway
6
  cloud:
7
    gateway: #网关路由配置
8
      routes:
9
        #将 micro-service-cloud-provider-dept-8001 提供的服务隐藏起来，不暴露给客户端，只给客户端暴露 API 网关的地址 9527
10
        - id: provider_dept_list_routh   #路由 id,没有固定规则，但唯一，建议与服务名对应
11
          uri: http://localhost:8001          #匹配后提供服务的路由地址
12
          predicates:
13
            #以下是断言条件，必选全部符合条件
14
            - Path=/dept/list/**               #断言，路径匹配 注意：Path 中 P 为大写
15
            - Method=GET #只能时 GET 请求时，才能访问
16
eureka:
17
  instance:
18
    instance-id: micro-service-cloud-gateway-9527
19
    hostname: micro-service-cloud-gateway
20
  client:
21
    fetch-registry: true
22
    register-with-eureka: true
23
    service-url:
24
      defaultZone: http://eureka7001.com:7001/eureka/,http://eureka7002.com:7002/eureka/,http://eureka7003.com:7003/eureka/

1
- Path=/dept/list/**
2
- Method=GET

1
package net.biancheng.c;
2
import org.springframework.boot.SpringApplication;
3
import org.springframework.boot.autoconfigure.SpringBootApplication;
4
import org.springframework.cloud.netflix.eureka.EnableEurekaClient;
5
@SpringBootApplication
6
@EnableEurekaClient
7
public class MicroServiceCloudGateway9527Application {
8
    public static void main(String[] args) {
9
        SpringApplication.run(MicroServiceCloudGateway9527Application.class, args);
10
    }
11
}

1
lb://service-name

1
server:
2
  port: 9527 #端口号
3
spring:
4
  application:
5
    name: microServiceCloudGateway  #服务注册中心注册的服务名
6

7
  cloud:
8
    gateway: #网关路由配置
9
      discovery:
10
        locator:
11
          enabled: true #默认值为 true，即默认开启从注册中心动态创建路由的功能，利用微服务名进行路由
12
      routes:
13
        #将 micro-service-cloud-provider-dept-8001 提供的服务隐藏起来，不暴露给客户端，只给客户端暴露 API 网关的地址 9527
14
        - id: provider_dept_list_routh   #路由 id,没有固定规则，但唯一，建议与服务名对应
15
          uri: lb://MICROSERVICECLOUDPROVIDERDEPT #动态路由，使用服务名代替上面的具体带端口   http://eureka7001.com:9527/dept/list
16
          predicates:
17
            #以下是断言条件，必选全部符合条件
18
            - Path=/dept/list/**    #断言，路径匹配 注意：Path 中 P 为大写
19
            - Method=GET #只能时 GET 请求时，才能访问
20
eureka:
21
  instance:
22
    instance-id: micro-service-cloud-gateway-9527
23
    hostname: micro-service-cloud-gateway
24
  client:
25
    fetch-registry: true
26
    register-with-eureka: true
27
    service-url:
28
      defaultZone: http://eureka7001.com:7001/eureka/,http://eureka7002.com:7002/eureka/,http://eureka7003.com:7003/eureka/

1
spring:
2
  cloud:
3
    gateway:
4
      routes:
5
        - id: xxxx
6
          uri: xxxx
7
          predicates:
8
            - Path=xxxx
9
          filters:
10
            - AddRequestParameter=X-Request-Id,1024 #过滤器工厂会在匹配的请求头加上一对请求头，名称为 X-Request-Id 值为 1024
11
            - PrefixPath=/dept #在请求路径前面加上 /dept
12
            ……

1
- id: provider_dept_get_routh
2
  uri: lb://MICROSERVICECLOUDPROVIDERDEPT #使用服务名代替上面的具体带端口
3
  predicates:
4
    - Path=/get/**
5
  filters:
6
    - PrefixPath=/dept #在请求路径上增加一个前缀 /dept

1
package net.biancheng.c.filter;
2
import lombok.extern.slf4j.Slf4j;
3
import org.springframework.cloud.gateway.filter.GatewayFilterChain;
4
import org.springframework.cloud.gateway.filter.GlobalFilter;
5
import org.springframework.core.Ordered;
6
import org.springframework.http.HttpStatus;
7
import org.springframework.stereotype.Component;
8
import org.springframework.web.server.ServerWebExchange;
9
import reactor.core.publisher.Mono;
10
import java.util.Date;
11
/**
12
* 自定义全局网关过滤器（GlobalFilter）
13
*/
14
@Component
15
@Slf4j
16
public class MyGlobalFilter implements GlobalFilter, Ordered {
17
    @Override
18
    public Mono<Void> filter(ServerWebExchange exchange, GatewayFilterChain chain) {
19
        log.info("进入自定义的全局过滤器 MyGlobalFilter" + new Date());
20
        String uname = exchange.getRequest().getQueryParams().getFirst("uname");
21
        if (uname == null) {
22
            log.info("参数 uname 不能为 null！");
23
            exchange.getResponse().setStatusCode(HttpStatus.NOT_ACCEPTABLE);
24
            return exchange.getResponse().setComplete();
25
        }
26
        return chain.filter(exchange);
27
    }
28
    @Override
29
    public int getOrder() {
30
        //过滤器的顺序，0 表示第一个
31
        return 0;
32
    }
33
}

1
2021-10-21 16:25:39.450  INFO 19116 --- [ctor-http-nio-4] net.biancheng.c.filter.MyGlobalFilter    : Thu Oct 21 16:25:39 CST 2021进入自定义的全局过滤器 MyGlobalFilter
2
2021-10-21 16:25:39.451  INFO 19116 --- [ctor-http-nio-4] net.biancheng.c.filter.MyGlobalFilter    : 参数 uname 不能为 null！
